Conservation and Environmental Protection Reform Scheme of Xinling Electric Energy (1) Purify and Discharge Outdoors this Floor |
||||||
|
ADD: Soldering Workshop, 4th Floor, 328 Wei19 Road, Yueqing Economic Development Zone Date：2017.7.6 |
||||||
|
Modification of Smoke Purification in Soldering Workshop on the Fourth Floor (Design according to 140 Workplaces of 7 Lines) |
Sales manager |
Ma Ying |
1326238002 |
|||
|
Renovation Project |
Product Name |
Material |
QTY |
Unit Price |
Total |
Remarks |
| Soldering Tin Assembly Line |
Equipment Fume Odor Purifier |
QC-YJ-K2/20-A2 |
|
|
|
|
|
Single flow fresh air fan |
QC-DF/2500 |
|
|
|
|
|
|
Pipes |
Ф30㎝ |
|
|
|
|
|
|
three-way |
Φ30㎝ change two 25 |
|
|
|
|
|
|
|
cover plate |
|
|
|
|
|
|
|
Iron Shelf |
|
|
|
|
|
|
|
Installation wages |
|
|
|
|
|
|
|
Subtotal |
|
|
|
|
|
|
|
Single flow fresh air fan |
QC-DF/2500 |
|
|
|
|
|
Fresh air fan system |
Pipes |
Φ25 |
|
|
|
|
|
|
Rainproof cover |
|
|
|
|
|
|
|
Holes |
|
|
|
|
|
|
|
Installation wages |
|
|
|
|
|
|
|
Subtotal |
|
|
|
|
|
|
|
Total |
|
|
|
|
|
|
Remarks: 1) The above price includes tax. Includes installation; |
||||||
|
Advantages of purification equipment: |
||||||
|
1) Energy saving: the energy consumption of the purifier is 5.9 kw/h. |
||||||
|
2) Low noise, easy maintenance. |
||||||
|
3) Deposit in lump sum and withdraw in installments: 10 sets of purifiers are divided into two lines, and 5 sets are used as a group of modules. For example, 10 people can only open one line and 5 sets of equipment to work, and consume 600W; |
||||||
|
4) Purification: It is of great help to employees'health. |
||||||
|
Renovation Scheme of Xinling Fourth Floor Workshop (2) Outdoor High Altitude Direct Drainage Scheme of a Soldering Tin Pipeline |
||||||
|
Renovation Project |
Product Name |
Material |
QTY |
Unit Price |
Total |
|
|
Soldering workshop on the fourth floor |
Main pipe |
Ф30㎝ |
52m |
|
|
The distance between the workshop and the 6th floor |
|
|
Centrifugal fan (7.5kw) |
|
1 |
|
|
Power consumption: 7.5kw |
|
|
accessory |
|
900 |
|
|
|
|
|
Installation cost |
3 people for 4 days. |
12 days |
|
|
|
|
|
|
|
|
|
|
|
|
Remarks: 1) The above prices do not include tax and installation, and other customer requirements are charged separately. |
||||||
|
2) A centrifugal fan installed on the 7th floor consumes 7.5ww/h of energy, has 115 decibels of noise and short service life. |
||||||
|
3) Installation outdoors is unsafe, and there are potential safety hazards in the later period. |
||||||
|
Advantages and disadvantages of the two schemes |
|||||
|
One line, 20 stations |
Purified emissions |
Traditional emission |
More inputs |
Day/Noise/Purification |
Environmental Protection Tax |
|
Item |
|
|
|
|
|
|
Material |
|
|
|
|
|
|
Power saving |
Monthly power consumption is 288 degrees/RMB 316 |
Monthly power consumption is 1800 degrees/RMB 1980 |
|
|
|
|
Time saving |
4 working hours |
15 working hours |
|
More than 11 working hours |
|
|
Safety |
Indoor installation |
Outdoor High-altitude Work |
|
|
|
|
Fan |
Energy saving and environmental protection fan (6 years) |
Centrifugal fan (3 years) |
|
|
|
|
Noise |
65db |
115db |
|
50db |
Over 16 db: 11,200 yuan/month |
|
Purification |
Yes |
No |
|
|
|
|
Environmental protection |
Orderly production |
Confronted with inspection, shutdown and rectification |
|
|
|
|

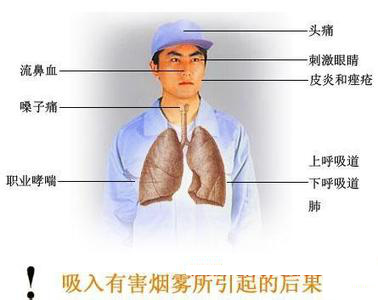

Protection of the body |
Great protection |
Have a strong hazard |
|
|
|
|
Risk warning |
|
|
|
|
|
|
Total |
17061 Yuan |
||||
|
Note: The annual power saving calculation is based on 10 months. |
|||||
Conclusion:
1. Now invest 100,000 yuan at a time, and earn money back in 6 months;
2. When the environmental tax is collected in January 18, we can strive for a "half collection" preferential policy;
3. The noise of the wind turbine is up to standard (the national standard is 85 decibels during the day and 75 decibels at night).
4. It is equipped with purified emissions to avoid the fear of future environmental protection inspection.
5. You can apply for the national subsidy policy for the workshop environment transformation, about 30% of the project transformation amount;
Solder fume, solder paste chemical composition: formaldehyde, toluene, dimethyl ester, etc.

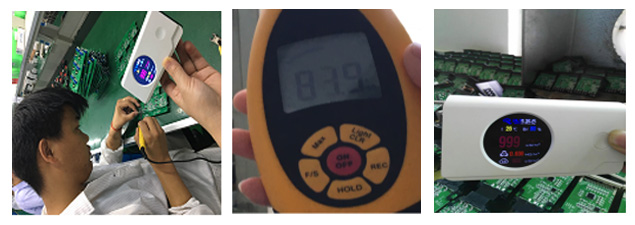

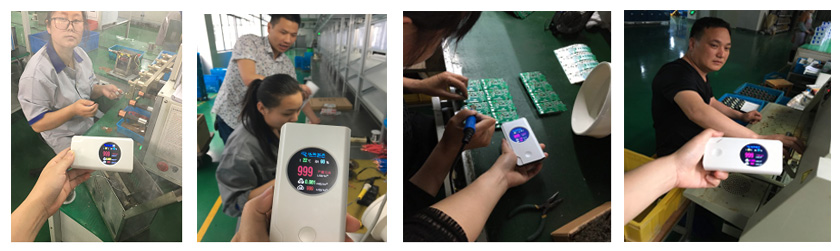

2. On-site test data on the fourth floor: PM2.5 is 13 times higher than the national standard, formaldehyde and toluene are 6.3 times higher than the national standard, and the noise is between 83-92.
For the sake of the employees of the workshop, for the sake of reducing the energy consumption of their own enterprises, a company wants to reduce pollution for the country. Regardless of the consideration, the installation workshop purification is a good deed of merit.

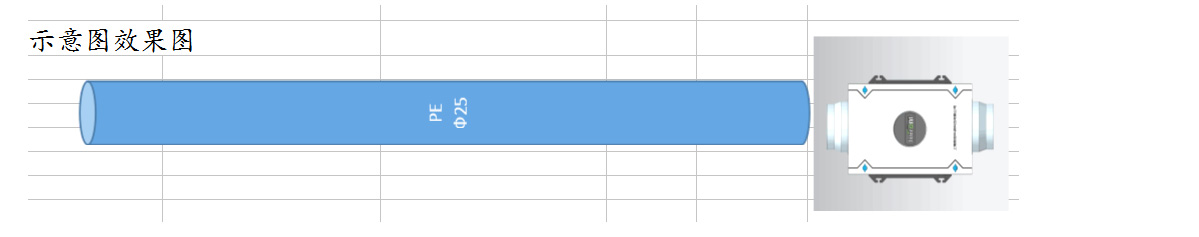

5. Schematic Diagram

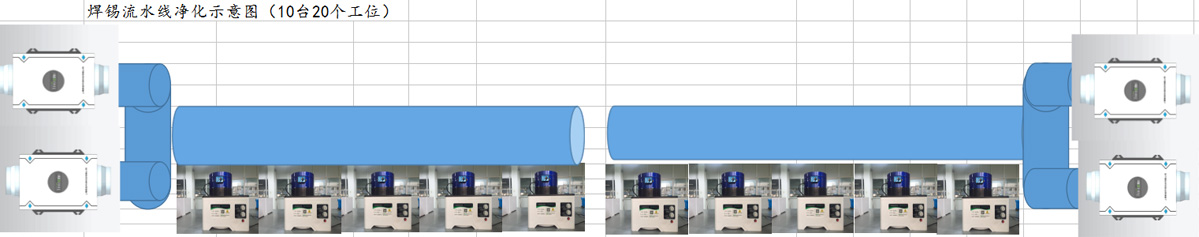

6. Process flow of soldering tin pipeline:
Smoke generated by soldering tin is collected through the hose of "equipment oil fume odor purifier" and ionized and decomposed into carbon dioxide by electrostatic high voltage electric field after primary filtration. Smoke and harmful gases are filtered through advanced filter through pipeline and discharged into the floor through fresh air fan.
Technical parameters comparison:| Item | Qianchuang environmental protection | Xinling Electric (Existing) |
| 1. Induced draft distance | 30-45㎝； | 10-15㎝； |
| 2. Air speed | 4.5m/s or more | 1.36m/s |
| 3. Noise | 65 db or less； | 83-92 db or less |
| 4. Air volume | 8800m³/h | 2600m³/h |
| 5. Power consumption | 1.2kw | 7.5kw |
| 6.Annual operating cost | 120 Yuan/Unit |
|
7. Fresh air fan system
8. Flow chart of fresh air process
The smoke leaking from the soldering workshop floats in the workshop, and is collected and filtered by a single-flow new fan installed on the top floor and discharged to the outside through the pipeline to improve the air in the workshop.
Shanghai Qianchuang Environmental Protection Technology Co., Ltd.
2017/7/6
