Energy-saving and environmental protection renovation of pouring workshop on the fourth floor of CHINT Power Supply
Project Introduction
| Address: 4th Floor, No. 1318 Binhai 2nd Road, Wenzhou Economic and Technological Development Zone Date2: :17.06.29 | ||||||
|
There are 22 pouring stations in the workshop, two stations need a fresh air equipment, and 22 stations for eight sets. |
Sales manager |
|
|
|||
|
Renovation Project |
Purification of Harmful Gas in Pouring Workshop |
Material |
QTY |
Unit Price |
Total |
Remarks |
|
|
Single-flow fresh air fan (power consumption: 200w) |
2500m³ |
11 |
|
power consumption: 2.2kw |
|
|
|
Energy saving and environmental protection fan |
|
22 |
|
power consumption: 1.5kw |
|
|
|
Main pipe |
Coloured steel phenolic plate |
|
|
|
Chint self-buying |
|
|
Iron shelf |
|
11 |
|
|
Chint self-buying |
|
|
Rainproof cover |
|
11 |
|
|
Chint self-buying |
|
Make holes |
Holes |
|
11 |
|
|
|
|
|
Installation cost |
|
|
|
|
|
|
|
Subtotal |
|
|
|
|
Total power consumption: .7kw |
|
|
Total |
|
|
|
|
|
|
Remarks: 1) The above price includes tax and freight; the customer has other requirements and the cost is added. |
||||||
|
2) fan power consumption: 3.7 kw |
||||||
|
3) Indoor installation is simple and easy to maintain. |
||||||
The scheme design is how to solve the odor and power consumption caused by pouring in the workshop on the fourth floor.
1. Chemical composition of insulating paint: formaldehyde, toluene, dimethyl ester, etc.

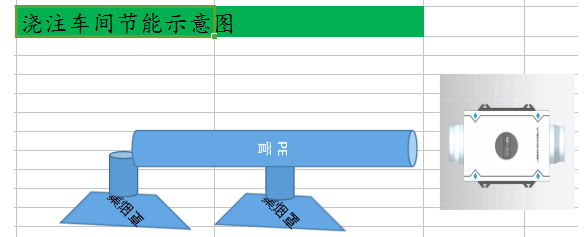

2. Schematic diagram of workshop energy saving
Exhaust gas purification process
The odor generated by pouring is quickly collected by the energy-saving and environmentally-friendly fan in the hood, and the particulate matter above PM2.5 is simply filtered out by the primary and intermediate filters of the new fan, and then the odor is absorbed by the activated carbon filter to be discharged to the floor.
|
Advantages and disadvantages of the two schemes |
|||||
|
Item |
Simple fresh air emission |
Traditional emission |
More inputs |
Day/Noise/Purification |
|
|
Material |
34100 |
|
|
|
|
| Power saving |
Monthly power consumption 888 degrees/977 yuan |
Monthly power consumption 5400 degrees/5940yuan |
|
|
|
| Annual operating expenses |
2600Yuan/year |
|
|
|
Replace filter |
|
Safety |
High (indoor) |
Low (outdoor) |
|
|
|
|
Fan |
Short Indoor Service Life (6 years) |
Short Outdoor Service Life (4 years) |
|
|
|
|
Material |
Indoor (8 years) |
Outdoor (4 years) |
|
|
|
|
Noise |
|
|
|
|
|
|
Purification |
ordinary |
No |
|
|
|
|
Environmental protection |
ordinary |
No |
|
|
|
|
Body protection |
Yes |
Yes |
|
|
|
|
Risk warning |
Orderly production |
Confronted with inspection, shutdown and rectification |
|
|
|
|
Total |
|
|
|
|
|
Note: 3.7kwx8 hours=29.6x30 days=888x1.1 yuan/degree=977 yuan; 22.5kwx8 hours=180x30 days=5400 degrees/month x1.1 yuan=5940 yuan.5940-977=4963 yuan x 10 months = 49630 yuan / year power saving
Summary
1. Now investing 35,750 yuan in one time, 7 months of photovoltaic expenses can be saved back;2. The suction speed is more than double that of the original one, and the smell of the workshop is also improved, which is helpful to the employees.
3. You can apply for the national subsidy policy for the workshop environment transformation, about 30% of the project transformation amount.
Technical Parameters:
|
Item |
Chint Power (existing) |
Qianchuang environmental protection |
Remarks |
|
1. Power consumption |
22.5kw/h |
3.7kw/h |
Total power consumption |
|
2. Speed |
4.m/s or more |
9.m/s or more |
Exhaust Inlet/Unit |
|
4. Air Volume |
600m³/h |
1200m³ |
Exhaust Inlet/Unit |
Shanghai Qianchuang Environmental Protection Technology Co., Ltd.
2017/6/29
