Main Appilications
The fume odor purifier is used for purification of waste gas in the workshop, and is widely used in wave soldering machines, coating machines, reflow soldering and other mechanical equipment.
At the same time, it is used in the whole workshop to purify the exhaust gas or odor. Qianchuang specially develop the industrial exhaust gas purification device.

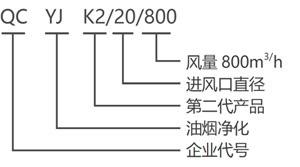

Model and Meaning
Main Technical Parameters
| Specification | QC-YJ-K2 |
| Input power | AC220V±10% |
| Power consumption of the whole machine | 40W |
| Air Volume (m3/h) | 800（or 1100） |
| Outline Dimension | 346.2×241.5×265 |
| Inlet / Outlet Diameter | φ208/193×203 (Holes can be customized) |
| Relative humidity of working environment | ＜ 90% |
| Ambient temperature | -30~60℃ |
| Smoking distance | 30~45cm |
| Remarks | No further notice shall be given to any change in the shape and size of this product. |
Product Selection
| No, | Name | Model | Order No. | Picture | Remarks |
| 1 | Fume odor purifier | QC-YJ-K2/20/800 |  |
 |
|
| 2 | Axial Fan | B1/800m3/h |  |
 |
Accessories |
| 3 | Front box | A1 (round) |  |
Placed on the C1, C2 filter | |
| 4 | Filter | C1 (round sponge) |  |
Accessories | |
| 5 | Filter | C2 (round PM2.5) |  |
Accessories |
Note: Accessories can be purchased separately

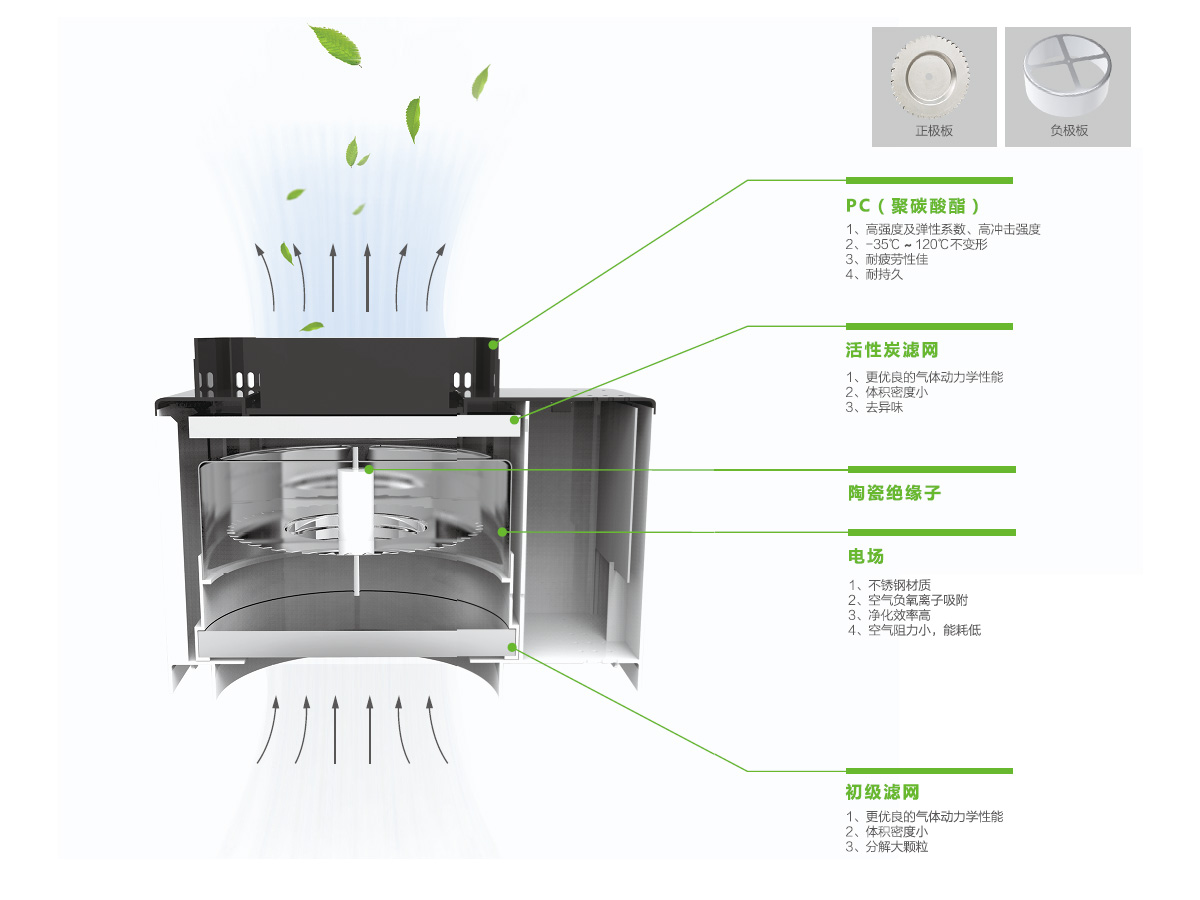

Structural Principle
Under the action of electrostatic high-voltage electric field, oil and smoke molecules are decomposed into carbon dioxide by electric charge. A large amount of negative oxygen ions are generated by the electric field to remove most of the odor. The air flows through PM2.5 to filter out clean air.

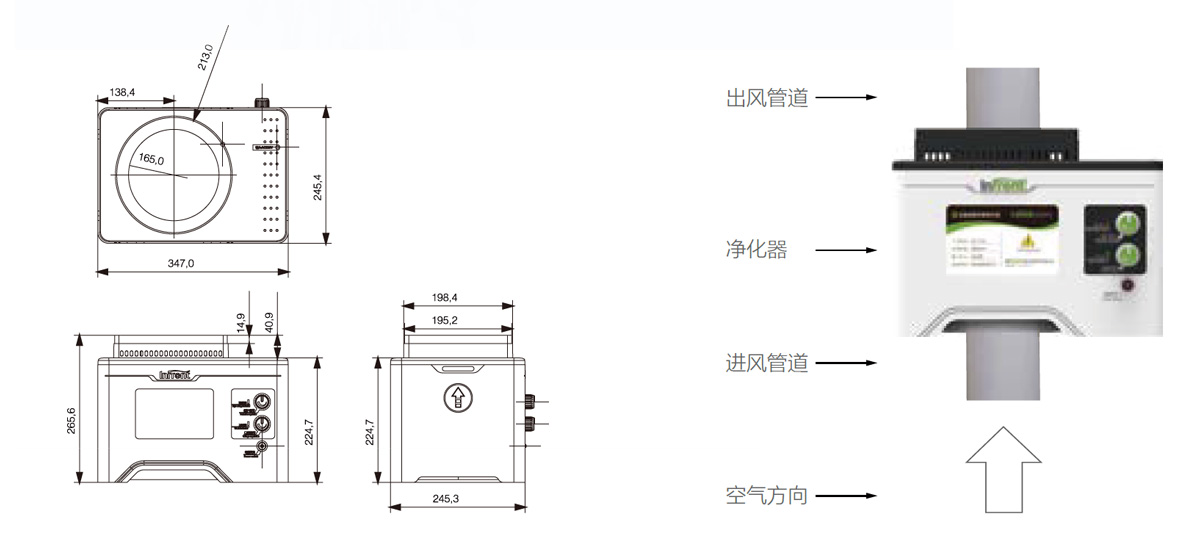

Installation Dimension
Common Failures and Troubleshooting
| Fault phenomenon | Cause | Troubleshooting Method |
|
Continuous noise and even sparks during operation (Intermittent crackling during machine cleaning is a normal working phenomenon) |
Deformation of Pole Plate in Electric Field | Correct pole plate (consulting manufacturer) |
| The voltage is too high | Adjust the voltage (subject to the technician's instructions) | |
| The humidity inside the box is too high | Auto-recovery after blow-drying | |
| There are impurities in the electric field body | Cleaning up debris | |
| Damage of Insulation Material | Replace of insulating materials | |
| Inductive electricity in purifier outer box | The circuit is broken. | Replace line |
| Purification power supply works and purifier does not respond | Damage or breakdown of insulators or insulating ceramics in electric fields | Replace insulation accessories |
| The voltage is too low | Adjust voltage | |
| Other faults | Please contact the agent or manufacturer | |
After-sales Service and Guarantee
● Installation and commissioning: After the equipment is delivered, our company will guide the installation and commissioning of the equipment for free;
● Warranty period: Enjoy the after-sales policy of the company's long-term warranty, except for transportation or collision damage;
● Processing time commitment: During the use of the equipment, the machine breaks down, and the relevant department immediately gives feedback to our business related personnel. After receiving feedback, our company will contact you within 24 hours and submit a solution.
