Main Appilications
Mainly used to purify bad air in indoors and workshops.

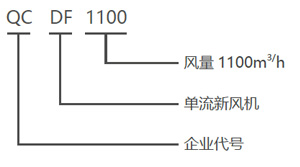

Model and Meaning

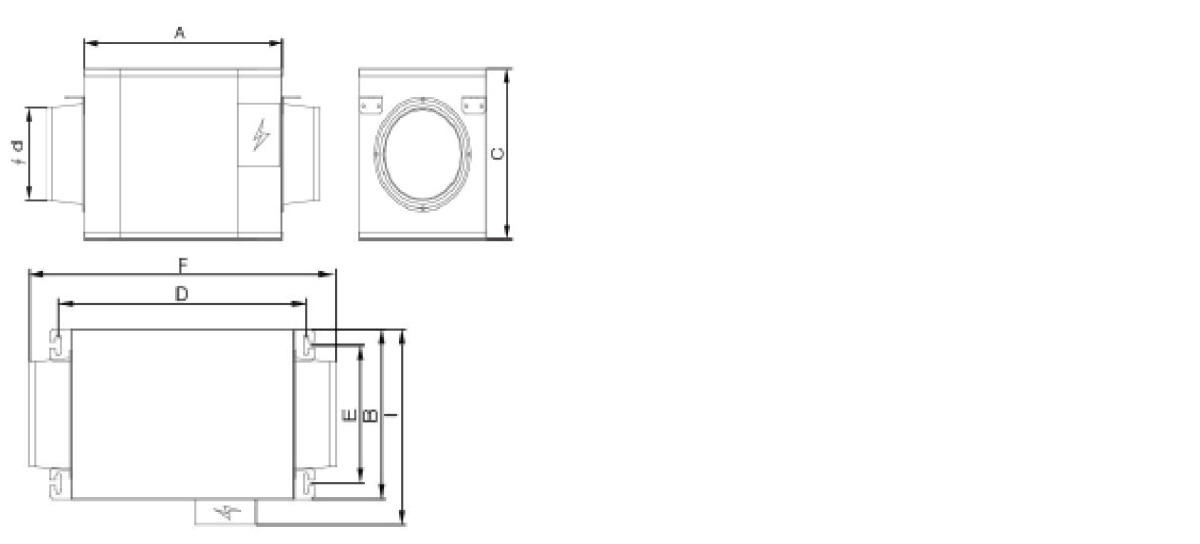

Installation Dimension
Product Specification
| Model | Air Volume （m3/h） |
Power Supply （V/Hz） |
Rated Power （W） |
Static Pressure （Pa） |
Noise（dB） （A） |
Weight （Kg） |
| QC-DF-1100 | 1100 | 220/50 | 90 | 190 | 40 | 40 |
| QC-DF-2500 | 2200 | 220/50 | 230 | 300 | 44 | 44 |
| QC-DF-3000 | 3000 | 220/50 | 375 | 250 | 48 | 48 |
Changing Size
| Model | A | B | C | D | E | F | I | φd |
| QC-DF-1100 | 450 | 281 | 292 | 460 | 235 | 626 | 340 | 200 |
| QC-DF-2500 | 500 | 500 | 355 | 550 | 454 | 674 | 560 | 250 |
| QC-DF-3000 | 550 | 550 | 500 | / | / | / | / | / |
Structural Principle
The application of high-tech nano-film technology, ultra-thin aluminum foil material technology, anti-static maintenance-free technology and noise elimination technology has broken through the technical bottleneck of traditional low heat recovery efficiency and high air leakage rate, and the heat recovery efficiency has reached more than 72%, the efficiency of energy recovery in the exhaust is greatly improved, users can enjoy more economical and affordable fresh air. The use of fresh air ventilators can improve the efficiency of air conditioning systems and increase the amount of fresh air replenishment, improve indoor air quality, and minimize energy consumption during the whole year of ventilation without increasing energy consumption. The total capacity of the air-conditioning host and the one-time investment of the equipment can also reduce the overall operating cost of the system.

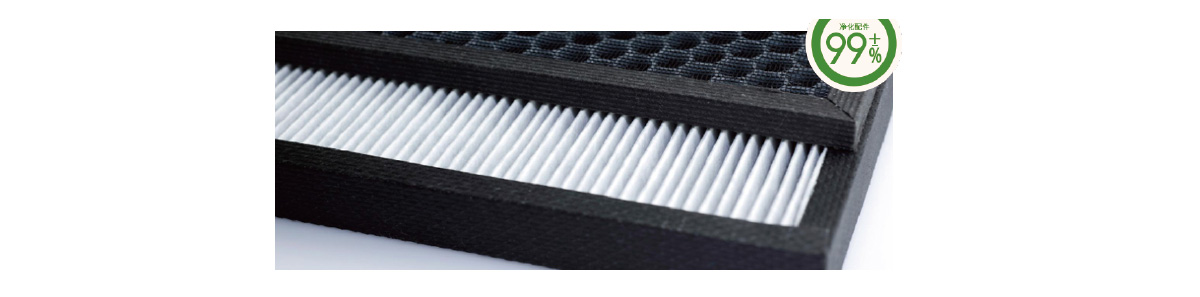

Three-layer Filtration Technology
The built-in filter uses a three-layer filter core, and the HEPA high-efficiency filter core reaches H11 level, and the purification efficiency of PM2.5 is over 99%. The inspection port is set on the side, which is easy to disassemble and easy to clean and replace on a regular basis.
Product Selection—Single Flow Fresh Air Ventilator
| No. | Name | Model | Order No. | Picture | Remarks |
| 1 | Single Flow Fresh Air Ventilator | QC-DF/1100 |  |
 |
|
| QC-DF/2500 | |||||
| QC-DF/3000 | |||||
| 2 | Filter | C |  |
Accessories |
Note: Accessories can be purchased separately
